LD5000

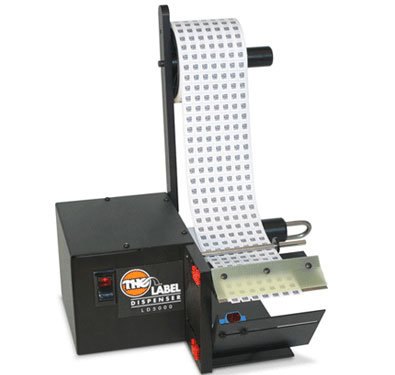

 LD5000   - 4.5" (114mm) WIDE - ELECTRIC LABEL DISPENSER

Ideal for short length and bar code labels
Will dispense labels and die-cut parts
Will dispense lables from .25" to 4.5" (6.35 to 114mm) in width
Will dispense labels from .125" to 6" (3.2 to 152mm) in length
Will accomodate core sizes from 1" (25.4mm) up
Photosensor accuracy
Automatically removes paper, vinyl, acetate, polyester, foil, etc. from its liner
Automatically rewinds liner scrap for a cleaner working environment
Liner scrap is easily removed
No tools required for adjusting to different size labels
All metal construction
No maintenance required
Adjustable strip plate for hard-to-release labels
LD5000C for clear lables
LD5000R for black or metallic lables

Model # Liner Capacity Width Length Roll Capacity Feed Speed* Dimensions Electrical Requirements Weight
LD5000 .25" to 4.5" (6.35mm to 115mm) .125" to 6" (3.2mm to 152mm) 12" (30.5cm) 1.6"/sec (3.9cm/sec) 10.8" (L) x 10.8" (W) x 14.5" (H) 27.4cm (L) x 27.4cm (W) x 36.8cm (H) 100/120V 50/60Hz, <1amp (220V 50/60Hz available) 10.5lbs (4.76kg)
  * speed calculated at 60Hz
